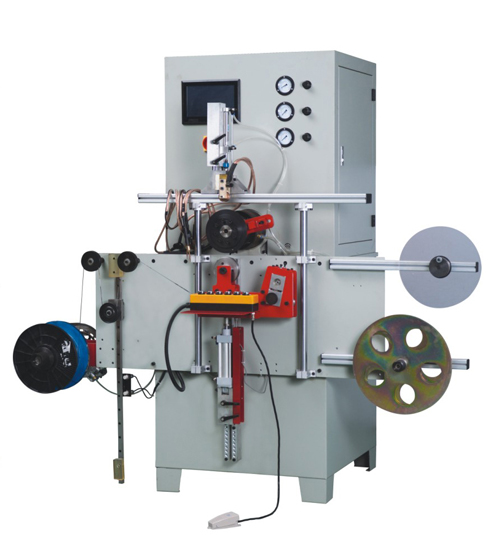

Automatic Winding Machine For Spiral Wound Gasket

Produce range: 25mm-500mm Automatic spot welding; Can use both pre-formed SS strip in pancake or 20-25kgs spool of flat strip


Send Inquiry


Description

Automatic winding machine for spiral wound gasket Details

STYLE KXT E300C
Automatic winding machine for SWG
Working mode Both Manual and Automatic mode
SS strip Can use both pre-formed SS strip in pancake or 20-25kgs spool of flat strip
Producing ability Standard package including models for 1"-10" 150# SWG with or without inner ring, other size model on request with extra charge
SWG thickness 4.5mm (also suitable for 3.2 and 6.4mm after changing roller parts, V shape winding or W shape winding for option)
Maximum gasket OD 500mm
Minimum gasket ID 25mm
Gasket OD tolerance ±0.2mm
Spindle speed 0--312.5rpm
Total power 8kw
Spindle motor power 1.5kw
Welder power 6kw
Power supply voltage 380V or 220V for option, 3 phases
Air compressor 0.6-0.8 MPA
PLC xinjie
Production rate 20--30s  /pc      (for ANSI 6" 150LB)
Machine measurement 2000*1200*1900mm
Machine net weight 600kg
