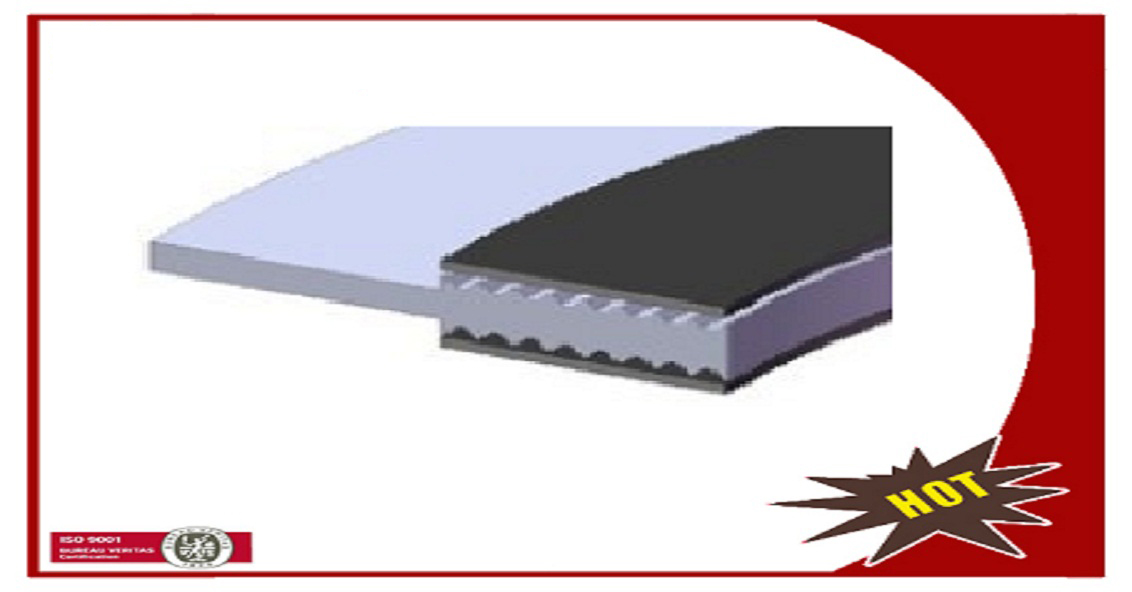

Kammprofile Gasket with Integral Outer Ring
> Kammprofile gasket with machined centering ring > The metallic core is made with a concentrically grooved profile on both sides and a machined centering ring. > Gasket with soft sealing layer both sealing surface.
Description
Kammprofile gasket consist of a metal core, generally stainless steel with concentric grooves on both sides. It features excellent anti blowout properties associated with the reliability of a solid meta-to-metal seal combined with soft sealing face to ensure a tighter joint.
Prime Features
> Suitable for a range of chemicals
> Suitable for use in high pressure and high temperature applications
> Can be refurbished and reused
> Can be manufactured to suit standard flange applications and vessels.
> Can be manufactured for use with narrow flanges
> Better leak tightness than spiral wound gasket
Material of construction
Carbon steel, stainless steel, 321, 347, monel 400, inconel, incoloy, nickel, titanium, hastelloy, copper
Coating materials: Graphite, PTFE etc.
Specifications
Products are manufactured in accordance with all relevant gasket standards to suit flange designations: ASME B16.5, BS1560, ASME B16.47, BS EN1092, DIN, JIS and NF.
More informations, please contact us.
