Products

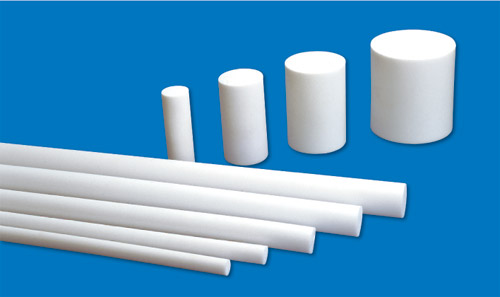

PTFE Rod

PTFE Rod,You Can Buy Various High Quality PTFE Rod Products from Global PTFE Rod Suppliers and PTFE Rod Manufacturers at Kaxite Sealing.


Send Inquiry


Description
[ Features ]
There are two kinds of PTFE rods to offer. One is manufactured by Paste extruding method in the diameter from 4 to 9mm and the other Is made by ram extruding method is the diameter from 10to 50mm; rods Over the diameter 50mm are manufactured by moulding. PTFE is the most chemical-resistant of all known plastics. It does not age.
PTFE has a wide range of practicable temperature from 180% - +260 and a wax-like surface to which anything hardly sticks.
PTFE has the lowest coefficient of friction of all known solid materials. It has the best electrical properties of all plastics.


[ Specifications ]

TYPES

Diameter(mm)

Length(mm)

Nominal

Tolerance

Nominal

Tolerance

SFFBN

4,5,6

+0.48
0

100

+5.0

7,8,9

+0.58
0

SFxBN

10,13,15
16,18

+1.10
0

1000

+3.60

20,25,30

+1.30
0

35,40,45
50

+1.60
0

55,60,65,70,75
80,85,90,100

+2.00
0

1000

+2.50

110,120,130
140,150

+2.50
0

180,200,250
270,300

+3.0
0

300

+2.0

[ Main properties ]

Properties

Unit

Result

Apparent density

g/cm3

2.10-2.30

Tensile strength (min)

MPa

14.0

Ultimate elongation (min)

%

140


Note: When the diameter of rod is larger than 16mm.only test Apparent density
[ Applications ]
Electrical Insulation,seal,Antisticking materials.
