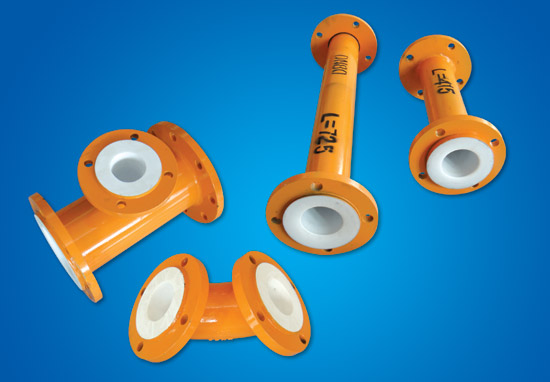

PTFE Steel-plastic Component Pipe

Kaxite is one of the leading China PTFE Steel-plastic Component Pipe suppliers and manufacturers, and with productive factory, welcome to wholesale PTFE Steel-plastic Component Pipe products from us.


Send Inquiry


Description
[ Features ]
The PTFE steel-plastic component pipe is made with high qualified ram extrusion tube, use special processing technology to tight the plastic tube inner steel pipe, the positive pressure is 1.6Mpa, the negative pressure is 77Kpa; it has a wide range of practicable temperature from -60 - +260 with good anticorrosion facility. It can transport corrosion gas, liquid under high temperature, which is unstable by others.

[ Specifications ]
Dg Diameter
S1
S2
D
F
L
25(1″)
3.5
2
21
55
4000
32(1¼″)
3.5, 4
2
28
68
40(1½″)
3.5
2
36
80
50(2″)
4
2
46
90
65(2½″)
4.5
2.5
60
105
80(3″)
4.5
2.5
75
125
100(4″)
4.5
3
94
150
125(5″)
4.5
3.5, 4
117
185
150(6″)
4.5
4
142
215
200(8″)
4.5
4, 4.5
191
280
